Dashboards - Configuring

Parameters

All widgets except Alarm Row and Alarm Graph share a Header parameter, a string, that sets the title displayed on the widget. If left empty, the widget shows a standard header.

Parameters that accept multiple signals or groups accept either a single string or an array of strings.

Single signal
"MB.AS01.MySystem_Meter1_E"
Multiple signals
["MB.AS01.MySystem_Meter1_E", "MB.AS01.MySystem_Meter1_P"]

Some widgets include an expand button in the top-right corner. Clicking it opens an expanded version of the widget in a popup window for a more detailed view.

Widgets that display a signal legend automatically handle overflow. When there are more signals than fit in the legend, a button shows how many are hidden. Clicking it opens the expanded view with all signals listed.

Widgets

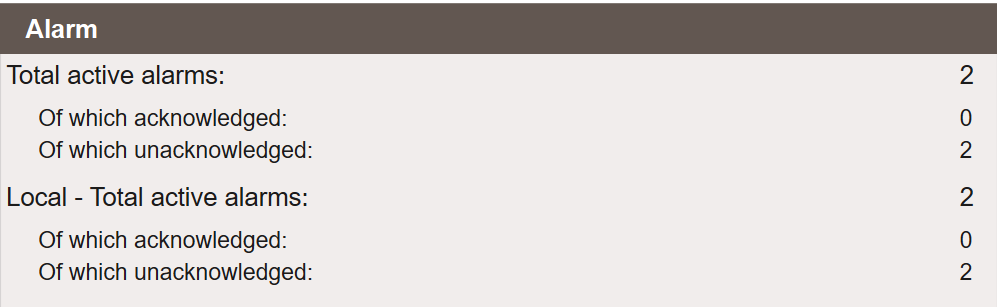

Alarm Status

Displays alarm counts: total, acknowledged and unacknowledged. Two sizes are available: Alarm_1x1 and Alarm_2x1.

Without a Grupp filter, the totals also count the alarms of connected remote systems, and a second block, Local, shows the same counts for this system's own alarms. With a filter, both blocks count only this system's alarms in the chosen groups.

Alarm Status

Parameters

  • Grupp — Filter alarms by group name. Leave empty to show all alarms.

Alarm Row

A compact single-row alarm indicator. Intended to sit at the top or bottom of a dashboard as a thin status band.

Alarm Row

Parameters

  • Grupper — Filter alarms by group name. Leave empty to show all alarms.

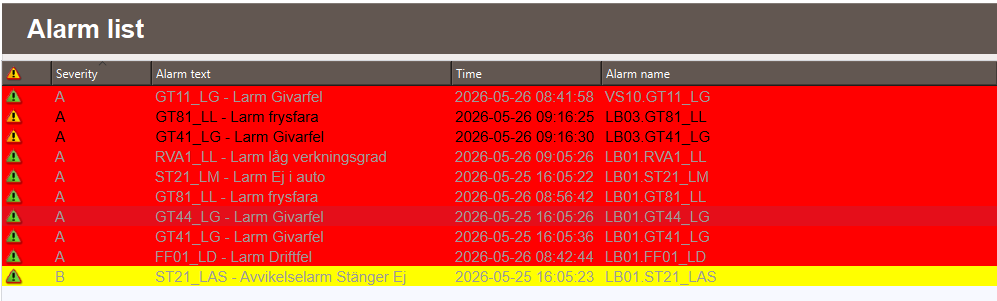

Alarm List

Displays currently active alarms in a scrollable list.

Alarm List

Parameters

  • Grupper — Filter alarms by group name. Leave empty to show all alarms.

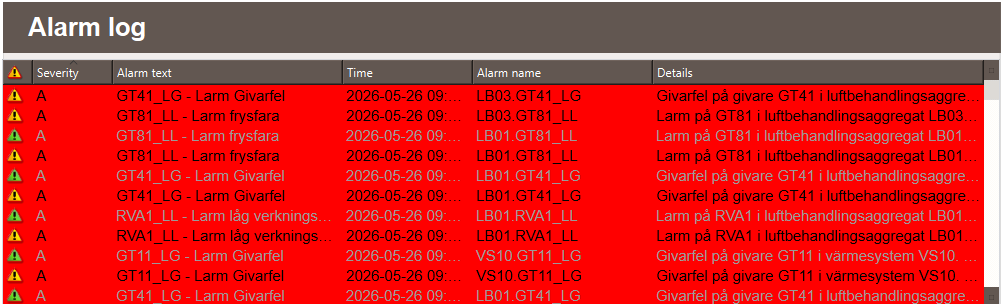

Alarm Log

Displays historical alarms in a scrollable list.

Alarm Log

Parameters

  • Grupper — Filter alarms by group name. Leave empty to show all alarms.

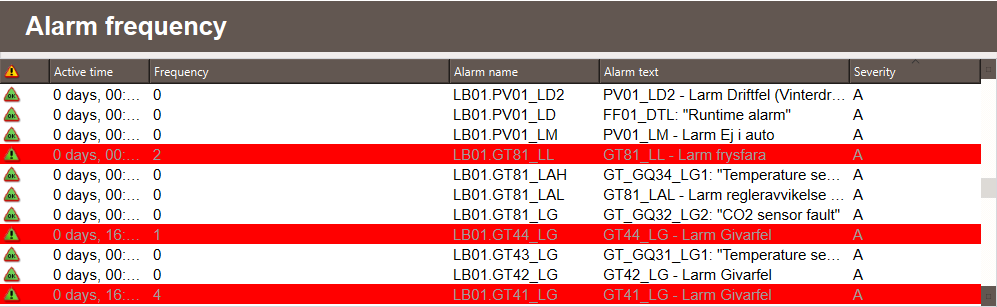

Alarm Frequency

Displays how often alarms have been triggered.

Alarm Frequency

Parameters

  • Grupper — Filter alarms by group name. Leave empty to show all alarms.

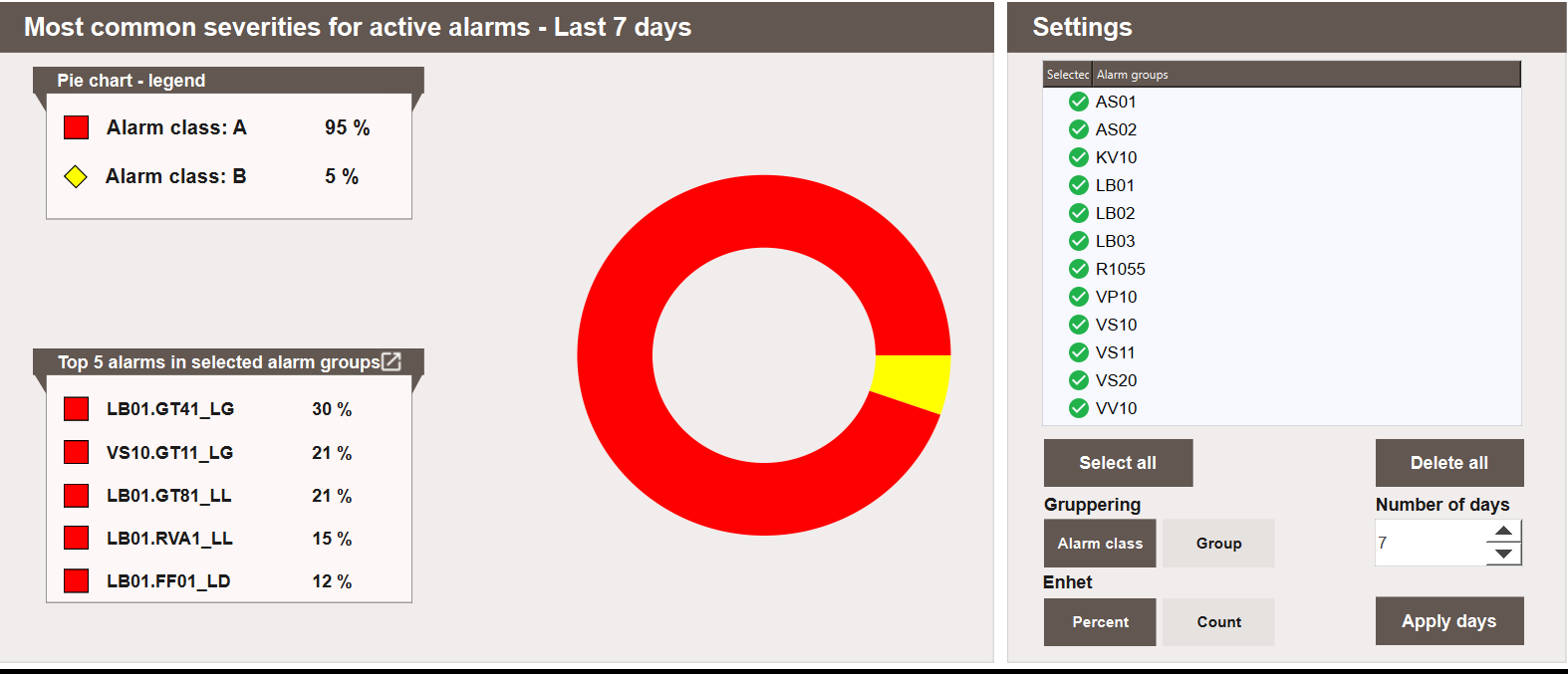

Alarm Graph

A larger alarm analysis widget. A pie chart shows the alarms of the last N days (default 7) grouped by alarm class or by alarm group, next to a Top 5 list of the most frequent alarms. A settings panel sets the grouping and the number of days. Requires an alarm logger that stores to a database. Suited for dashboards where alarm analysis is a primary focus.

Alarm Graph


History

Displays historical signal values as a trend graph. The legend shows current values with units and decimal precision.

History

The From and To fields at the top of the dashboard set the time range. How that range is applied depends on which button is used:

  • Apply — applies the From/To range to all History widget instances on the dashboard.
  • Calendar icon (on an individual widget) — applies the From/To range to that widget instance only, without affecting the others.
  • Restore — sets the From/To range to the last 5 minutes and applies it to all History widget instances. The window is fixed, so the widgets stop following live values.

The play/pause button on each History widget starts or stops live updating for that widget only.

Parameters

  • Signaler — Signal path or array of signal paths to display.

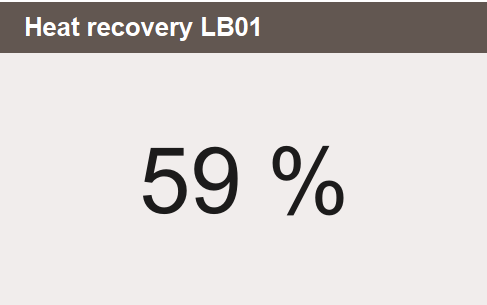

Key Value

Displays a single live value with its configured unit and decimal precision. Accepts any value in Data Store: internal variables, driver signals and System variables. Two sizes are available: KeyMetric_1x1 and KeyMetric_2x1.

Key Value

Parameters

  • KeyValue — Direct variable reference (not a string). Enter the variable path without quotes: MB.AS01.LB01_P, not "MB.AS01.LB01_P".

Signal Value Display

Displays current live values for one or more signals. Automatically resolves units and decimal precision from Data Store.

Signal Value Display

Parameters

  • Signaler — Signal path or array of signal paths to display.

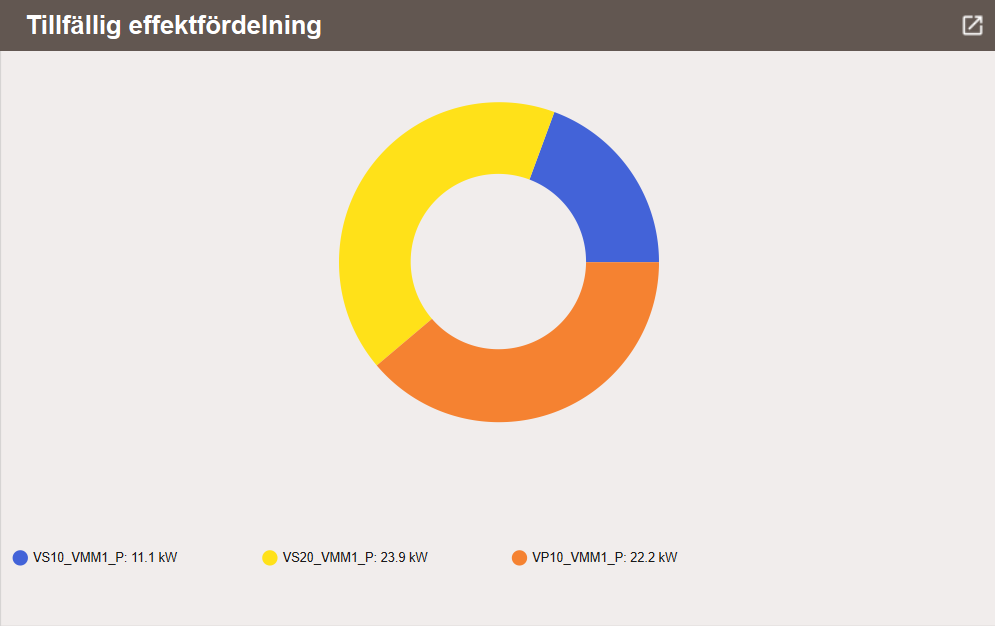

Pie Chart

Displays real-time signal distribution as a pie chart. Includes an expand button that opens an expanded view in a popup window.

Pie Chart

Parameters

  • Signaler — Array of signal paths to display.

Bar Chart

Displays signal value comparisons as a bar chart across configurable time periods. Suited for energy comparisons over time. Includes an expand button that opens an expanded view in a popup window.

Bar Chart

Parameters

  • Signaler — Array of signal paths to display.
  • Typ — Aggregation mode. Determines how each period's bar value is calculated. Defaults to Add.
  • TimePeriod — The time unit for each bar: "Day", "Week", "Month" or "Year". Defaults to "Month".
  • TimeSpan — Number of periods to display. Defaults to 12.
  • LeftOrder — Direction of the date axis. Set to 1 to place older values to the right. Left empty, older values are placed to the left.
Typ Description
Add Sums all logged values within each period. Use for instantaneous signals such as power, where the sum represents total energy consumed.
Average Calculates the average of all logged values within each period. Use for continuous signals such as temperature.
Trend Shows the difference between the last value in the current period and the last value in the previous period. Use for signals where the change from one period to the next is what matters.
Result Shows the last logged value within each period. Use for signals where the end-of-period state is what matters.

The values are read from the first cyclic, change or trigger logger found that logs the signal. A signal that no such logger logs gets empty bars. The newest bar is the current period so far, and the chart refreshes every hour.


Gauge

Displays a single live value as a dial against a configured range, with an optional warning band. The value is shown in the centre with its unit, the range ends are labelled at each side, and the signal path is shown below. Two sizes are available: Gauge_1x1 occupies a single grid cell and Gauge_2x2 a two-by-two block.

Gauge widget

Parameters

  • Signal — Direct variable reference (not a string). Enter the signal path without quotes: MB.AS01.LB01_P, not "MB.AS01.LB01_P".
  • Header — The widget heading. If empty, the heading is Gauge.
  • Min and Max — The ends of the dial's range. Default to 0 and 100.
  • WarningMin and WarningMax — Warning limits. Values at or below WarningMin, or at or above WarningMax, lie in a warning zone. Each takes one value or an array [red, yellow], for example [90, 75] for WarningMax or [10, 25] for WarningMin. While the value is in a zone, that zone is coloured and the centre disc blinks in its colour.

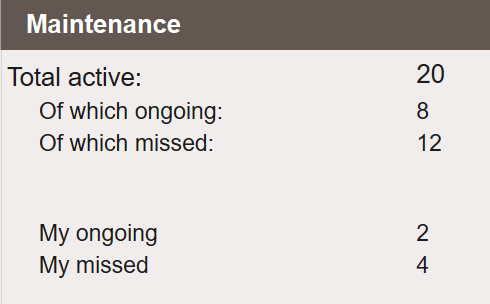

Maintenance

Displays maintenance task status: the total of active tasks, and how many of them are ongoing and missed. Below that, My ongoing and My missed count the tasks assigned to the logged-in user. My ongoing includes only tasks with a deadline within the next 60 days, set by the maintenanceDaysAhead variable. Connects directly to the maintenance module. No signal input required.

Maintenance

Next Steps

  • Extending — custom widgets, design patterns and troubleshooting
