Documents - Get Started

Requirements

The following scripts are required to use Documents and all related functionality covered in the Documents guides:

  • scDoc
  • scUsers
  • scFilePicker
  • scWM
  • scButtons
  • scNav
  • scToolTip
  • scSmartPopup
  • scSubNav
  • scLinking
  • scPrototypes
  • scSuffix
  • scThemes
  • scAlert
  • scQuickSort

The Documents module is available under Documents & Logbook → Documents in the main menu. The Documents - List view is the main entry point. It lists all documents in the system, where they can be added, previewed and managed.

Files view

The view is split into two panels. The left panel shows a file tree with two categories: Local files and Online files. Local files are stored on the server; online files are links to external URLs. The right panel shows the preview for the selected file. On WideQuick® Web, a third category appears for files that cannot be opened in the browser.

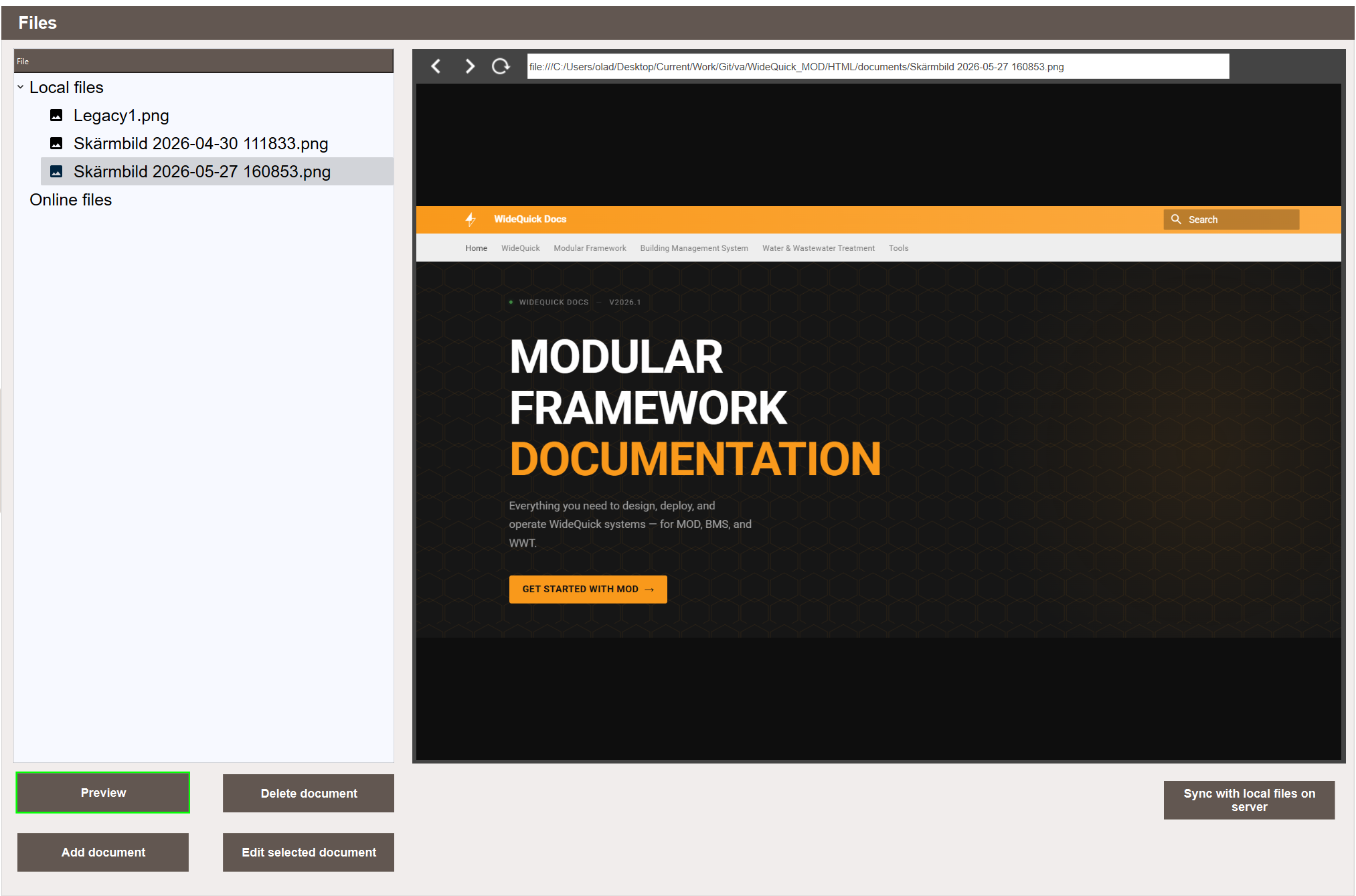

Documents Files view

The following actions are available at the bottom of the view:

  • Preview — opens the selected file in the preview panel.
  • Add document — opens the upload dialog to add a new document.
  • Delete document — removes the selected document. A local file is deleted from disk after a confirmation, and this cannot be undone. An online resource is removed from the list without a question. Remote and web clients can only delete online resources.
  • Edit selected document — rename the selected document, or change the URL of an online resource. The path of a local file cannot be edited.
  • Sync with local files on server — scans the documents folder on the server and updates the list to match. See Syncing with the filesystem.

Uploading a local file

Local files can only be uploaded on the server. On remote and web clients the Upload file tab is disabled and shows "File upload is not possible on remote systems".

  1. Click Add document.
  2. Select the Upload file tab.
  3. Click Click to browse local files and double-click files in the file browser to add them to the queue.
  4. Optionally click a file name in the queue to rename it before uploading.
  5. Click Upload files.

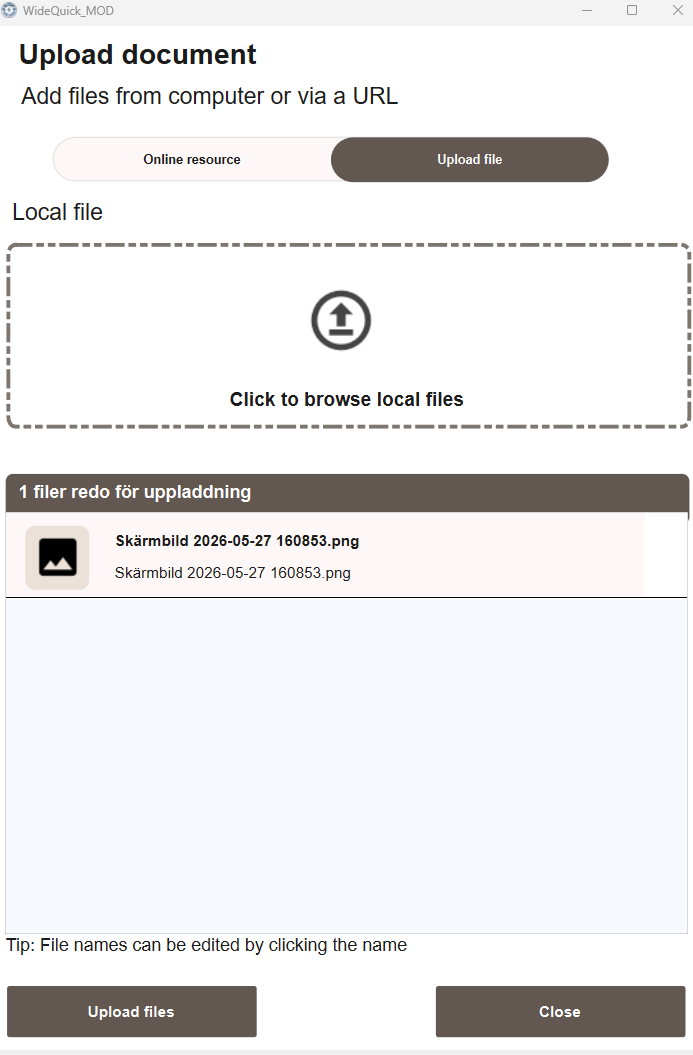

Upload file tab

The files are copied to the server and added to the document list under Local files.

Adding an online resource

  1. Click Add document.
  2. Select the Online resource tab.
  3. Enter the URL in the Document URL field.
  4. Enter a display name in the Document name field.
  5. Select the file type using the icon selector.
  6. Click Add.
  7. Click Upload files.

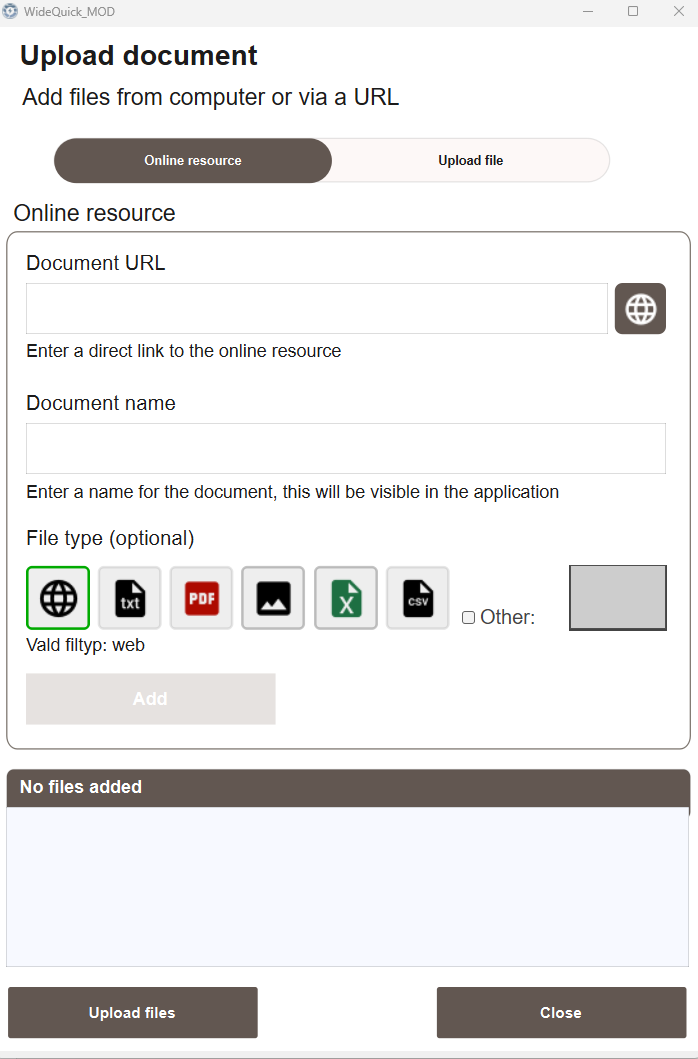

Online resource tab

The resource is added to the document list under Online files. Only the URL is stored. No file is downloaded to the server.

Previewing a document

Select a file in the left panel and click Preview to load it in the preview panel. Double-clicking the file does the same.

Images, PDFs and web pages render directly in the preview panel. Office and OpenDocument files (Word, Excel, PowerPoint, .odt, .ods, .odp) are never previewed inline. On desktop clients they open in the external application associated with the file type. On WideQuick® Web they are grouped separately in the file tree, and an alert explains that they cannot be shown in the browser.

Next Steps

  • Configuring — linking documents to objects and keeping files in sync
  • Extending — privilege reference
