Time Channel

The Time Channel popup allows users to configure time-based schedules for the selected object. Each day of the week can have up to two active time periods defined by Turn on and Turn off times. It only appears in the Tab menu when the object has a signal matching the _TK suffix.

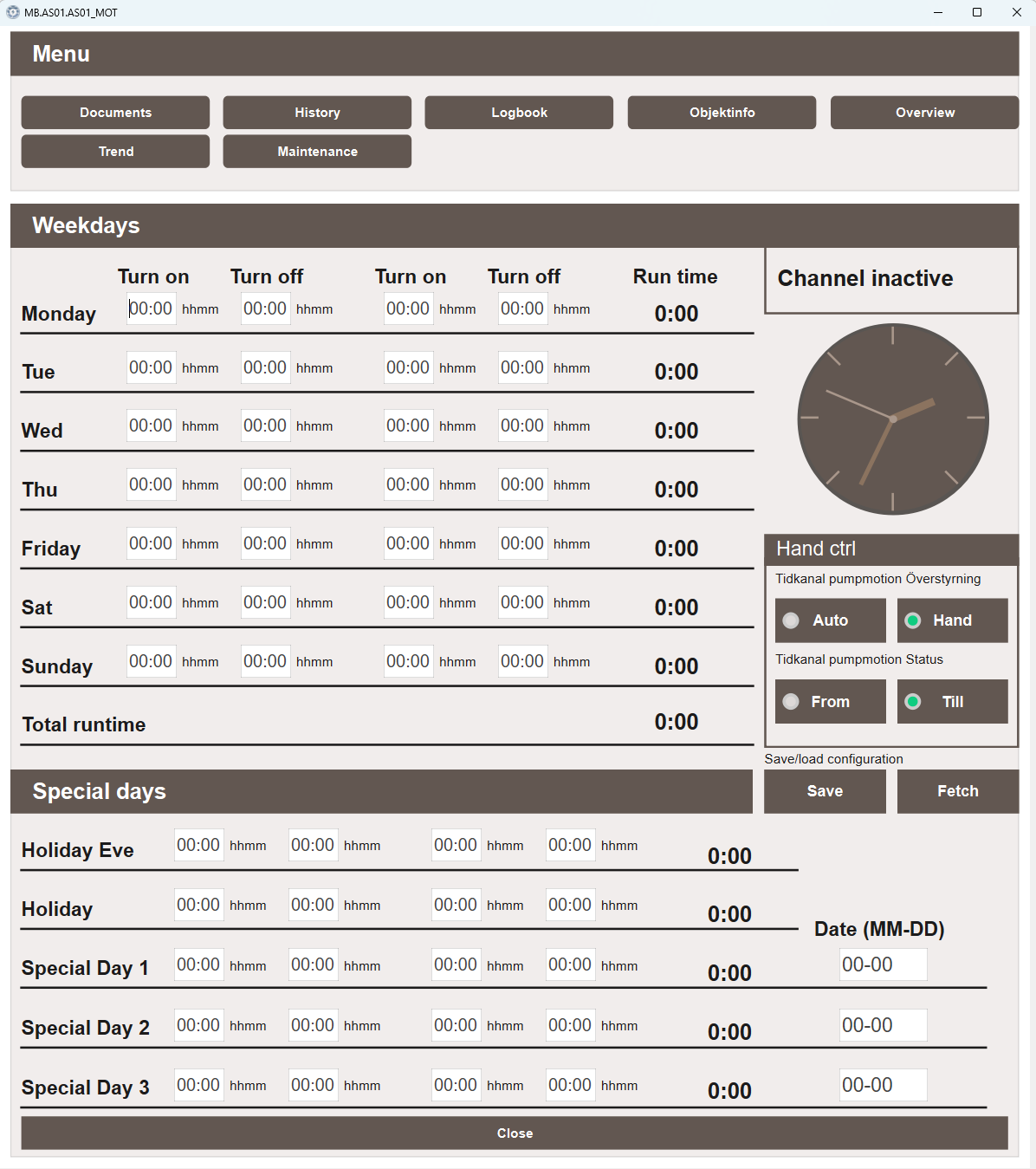

Time Channel popup

Save and fetch

The Save and Fetch buttons allow Time Channel configurations to be stored and reused across the project.

Save stores the current schedule — including all weekday and special day time slots — to the database under the object's tag name. This means each object stores its own configuration independently, making it possible to maintain separate schedules for different objects.

Fetch opens a popup listing all saved Time Channel configurations. Select a configuration from the list to load it into the current object. This makes it easy to apply a previously saved schedule to a new object, copy schedules between objects, or restore a known configuration after changes.

Tip

Save a baseline configuration before making adjustments. If the new schedule does not work as intended, use Fetch to restore a previously saved state.

Channel status

The top right panel displays the current status of the Time Channel — whether it is active or inactive — alongside a clock showing the current time.

Weekdays

The Weekdays section displays a schedule for each day of the week. Each day supports two independent active periods, each defined by a Turn on and Turn off time in hhmm format. The Run time column shows the total active time for that day. A Total runtime row at the bottom shows the combined runtime across all weekdays.

Special days

The Special days section allows different schedules to be defined for specific dates. The following special day types are available:

  • Holiday Eve — the day before a public holiday
  • Holiday — public holidays
  • Special Day 1, Special Day 2, Special Day 3 — custom dates that can be defined by entering a date in MM-DD format

Each special day supports the same two-period schedule as weekdays.

Hand ctrl

The Hand ctrl panel allows the Time Channel to be overridden manually:

  • Auto — the Time Channel follows the configured schedule
  • Hand — the Time Channel is controlled manually, ignoring the schedule

The current output status of the Time Channel is also shown:

  • From — the Time Channel output is currently off
  • Till — the Time Channel output is currently on

Default suffix aliases

The Time Channel popup uses a large number of suffixes to map each time slot to a specific signal. The key suffixes are:

Suffix alias Suffix Description
timechannelIsActive _TK Indicates whether the Time Channel is active
timechannelManualControl _TK1_0 Switches between Auto and Hand mode
timechannelManualCommand _TK4_5 Sets the output state in Hand mode

Each day and time slot is mapped to a dedicated suffix following the pattern _TK[register]_[index]. All time slot suffixes are writable.
