Maps & Indicators - Extending¶

This section covers how to extend the Maps & Indicators module with custom functionality. This includes connecting an Alarm object to a Map View for live alarm filtering, and creating custom map indicators with zoom navigation, linking, and status awareness.

Before getting started, make sure you are familiar with the basics of the Maps & Indicators module. If not, see Maps & Indicators — Get started.

Connecting Alarm to Map View¶

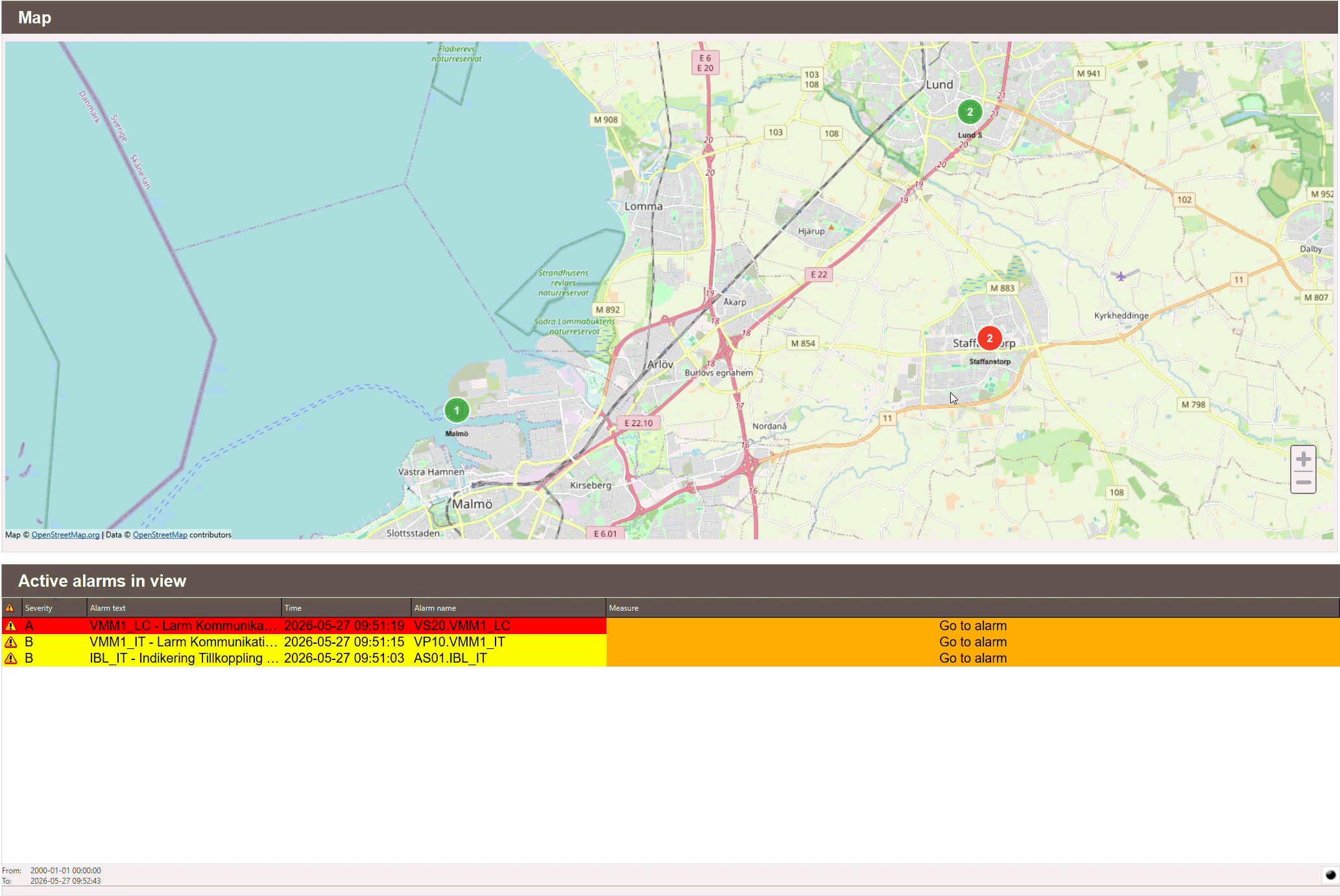

An Alarm object can be connected to a Map View so that it filters alarms based on which status pins or cluster pins are currently visible. This gives the user both a full system overview and station-specific control.

First, add the following onLoad script to the Workview containing both the Map View and the Alarm object. This enables all system alarms in the alarm list:

var local = alarmNames.split(",");

for (var index = 0; index < local.length; index++) {
    this.view.Alarm1.addGroup(local[index]);
}

app.alarmView = this.view;
scMap.alarmList = this.view.Alarm1;
scMap.updateAlarmList(scMap.mapView, scMap.alarmList);

Next, the Map View onLoad script already handles alarm list updates if an scMap.alarmList is set. Make sure the Map View onLoad script is configured as follows:

scMap.mapView = this;
scMap.initClusters(this);
if (scMap.alarmList) scMap.updateAlarmList(this, scMap.alarmList);

The Alarm object is now fully linked to the Map View and will display active alarms based on what is currently visible on the map.

Creating custom map indicators¶

The following sections explain the key concepts behind the built-in indicators and how to apply them when building custom ones. Rather than documenting a specific object, the focus is on the underlying patterns — zoom navigation, linking, status awareness, and clustering — so that the integrator can apply them freely to any custom indicator.

Zoom levels and navigation¶

Map View objects support zoom ranges, which control at which zoom level each object is visible. This is a powerful tool for reducing clutter — objects at a higher level can guide the user to more detailed views at lower zoom levels by setting a target zoom level on click.

To implement this, add a zoomTarget property to your custom indicator and use the following onClick script:

var mv = this.geo.mapView;
mv.zoomLevel = this.zoomTarget || 15;
mv.latitude = this.geo.latitude;
mv.longitude = this.geo.longitude;

This script does three things when the indicator is clicked:

• Sets the map zoom level to the value of zoomTarget. If no value is set, it defaults to 15.
• Centers the map on the latitude of the indicator.
• Centers the map on the longitude of the indicator.

By combining zoom ranges with a zoomTarget property, indicators at higher zoom levels can act as navigation aids — clicking them zooms in and reveals the more detailed indicators beneath.

Linking¶

Custom indicators can be linked to a Workview, a directory, or a specific object depending on the use case. This is controlled by adding a linkedView or targetObject property to the indicator.

Linking to a Workview¶

To link an indicator to a Workview, add a linkedView property and set its value to the path of the desired Workview ending in .kvie. Then add the following onClick script:

app.MultiViewer.setView(this.linkedView);

Linking to a directory¶

To link an indicator to a directory, add a linkedView property and set its value to a directory path such as System/Videdal. When clicked, the Fullscreen Menu will open at that directory, allowing the user to navigate to the desired Workview.

var _parts = this.linkedView.split("/");
var root = _parts[0];
var dir = _parts[_parts.length - 1];
app._subNavTarget = { root: root, dir: dir };

Linking to a specific object¶

To link an indicator directly to a specific object, add a targetObject property and set its value to the name of the target object. Then add the following onClick script:

scLinking.goTo(this.targetObject);

This will navigate to the Workview containing the target object and highlight it. For more information about GoTo, see Navigation — Extending.

Pin Status¶

The PinStatus object is the most complex of the built-in indicators. It does two things automatically when linked to a Workview:

• Alarm counting — queries the database for all alarms connected to the linked Workview and listens for changes. The result is reflected in the alarmCount property of the pin.
• Status colour — queries all objects in the linked Workview and maps their suffix signals to a status level using the scSuffix script. The pin circle colour updates automatically to reflect the highest active status:

The status mapping is configured in the scSuffix script through the suffixObj.Views object, which defines which object suffixes correspond to which status category. This does not need to be modified when creating a custom indicator.

Cluster awareness¶

The clustering system in Map View is driven entirely by the scMap script's initClusters() function. It identifies objects by scanning for two specific properties:

• An object with a roi property — treated as a cluster
• An object with a status property — treated as a pin and potential child

This means any custom indicator can participate in the clustering system simply by having the right property present. There is no requirement for a specific object name or type.

Making a custom indicator cluster-aware¶

For a custom indicator to be picked up as a child by the clustering system, it needs a status property. For the built-in PinStatus object this is managed automatically by its script — status is updated by a DataStoreListener whenever the linked Workview changes state.

For a custom indicator, status must be maintained by a script. The value should follow the same status hierarchy used by the built-in indicators:
