Navigation - Extending¶

This section covers how to extend the Navigation module with custom functionality. This includes creating shortcuts to specific objects using GoTo and adding custom icons to the navigation menu.

Before getting started, make sure you are familiar with the basics of the Navigation module. If not, see Navigation — Get started.

GoTo¶

The GoTo function allows linking directly to a specific object, making it possible to create shortcuts that bring the user to the view where that object is located. When reached via GoTo, the object is highlighted, making it easy to find even in a complex view. If the object exists in multiple views, a popup will appear showing all available locations.

To use GoTo, apply the following script to a button's onClick action, replacing YOUR_OBJECT.NAME with the name of the target object:

scLinking.goTo("YOUR_OBJECT.NAME");

In the example below, the goTo() function is applied to a button's onClick action with the target object MB.AS01.LB02_GT43:

GoTo in Alarm Groups¶

GoTo can also be integrated into Alarm Group and the AlarmList, allowing users to immediately navigate to the object that triggered an alarm and take action.

To enable GoTo for alarms, follow these steps:

1. In WideQuick Designer®, open the Alarm Group properties and navigate to Measures.
2. Click the circle next to Script to enable the script action and enter the following:

goToAlarm(app.alarmView.Alarm1.nameForCurrentAlarm, app.alarmView.name)

1. Add a Measure state by clicking Add on the same page. Enter the desired display text and select a colour.
2. In the Alarm object, navigate to Alarm Columns and enable Use Custom Alarm Columns.

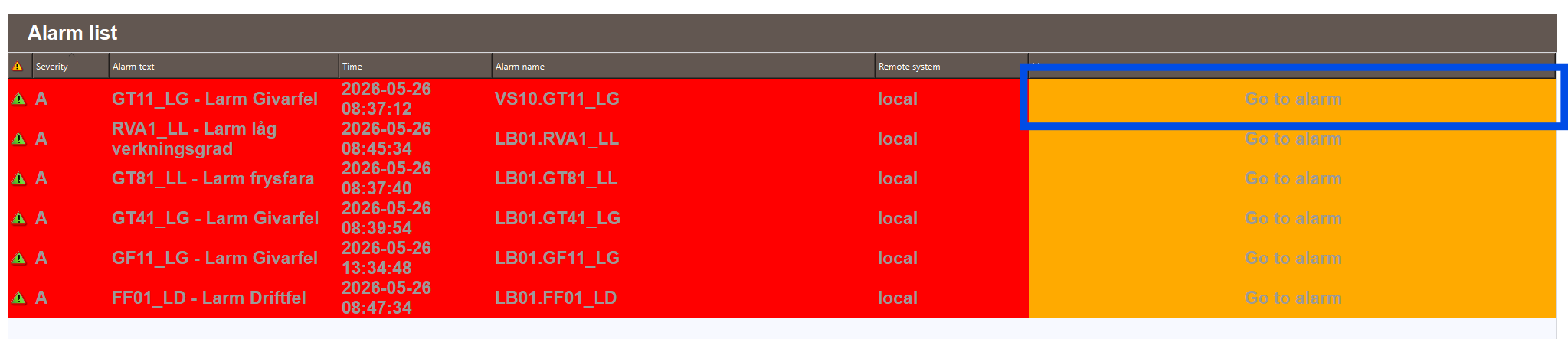

3. Select the Measure category — pressing this column for a specific alarm will trigger GoTo and navigate to the Workview where that alarm originated.

Custom navigation icons¶

This section covers how to implement custom navigation icons connected to specific views. The implementation process consists of two steps:

1. Importing and setting up the SVG
2. Connecting the SVG to a Workview identifier

Importing and configuring the SVG¶

First, import your SVG icon. It is recommended to have two versions — one for dark mode and one for light mode. This ensures the icon remains visible regardless of the user's theme preference. Name and place the files as follows:

• YourSvg-gray.svg — for the light theme
• YourSvg-white.svg — for the dark theme

Both files should be placed in Images/Material_Icons/.

If the application is intended to run through the web client, the SVG must have a width and height definition. Without these, the icon will not render in the web client. Verify this by opening the SVG in a text editor and confirming they are defined. If not, add them to the XML structure:

<svg
    width="24"
    height="24"
/>

With the SVG files placed in the correct folder and their dimensions verified, proceed to the next step.

Connecting the SVG¶

To connect an SVG to a folder or Workview, add an additional else if block to the selectImage() function in the scSubNav script, which can be found under Scripts → scSubNav in the project tree. Locate the selectImage() function and add the new else if block before the final else block, which handles the default icon fallback. The example below shows how to match the identifier solarcell to a solar panel icon:

else if (type === 'solarcell' || type === 'solar' || type === 'solarpanel' || type === 'solar park') {
    return base + 'solar-power' + s;
}

Any Workview whose name contains solarcell, solar, solarpanel, or solar park will be assigned the corresponding icon. The scSubNav script automatically converts Workview names to lowercase before comparing, so capitalisation is not an issue as long as the identifier words in the selectImage() function are lowercase. The base variable holds the path to the icon folder and s holds the theme suffix, which together form the full path to the correct SVG file. If no identifier matches, the final else block assigns a default icon.
